齒輪減速機
CVD 立式雙軸齒輪減速機
入力軸尺寸 / INPUT SHAFT
|
入力軸 SHAFT |
鍵槽 KEYWAY |
鍵 KEY |
||||
|
KW |
S1h6 |
P1 |
W1 |
T1 |
Q1 |
SPEC' |
|
0.1/0.2 |
14 |
25 |
5 |
16.2 |
22 |
5*5*22 |
|
0.4 |
16 |
30 |
5 |
18.2 |
27 |
5*5*27 |
|
0.75 |
19 |
40 |
6 |
21.7 |
35 |
6*6*35 |
|
1.5 |
24 |
50 |
8 |
27.1 |
45 |
8*7*45 |
|
2.2 |
28 |
55 |
8 |
31.1 |
50 |
8*7*50 |
|
3.7 |
28 |
55 |
8 |
31.1 |
50 |
8*7*50 |
出力軸尺寸 / OUTPUT SHAFT
|
出力軸 SHAFT |
鍵槽 KEYWAY |
鍵 KEY |
|||
|
Sh6 |
P |
W |
T |
Q |
SPEC' |
|
∮18 |
30 |
5 |
20.2 |
27 |
5*5*27 |
|
∮22 |
40 |
7 |
25 |
35 |
7*7* 35 |
|
∮28 |
45 |
7 |
31.1 |
40 |
7*7*40 |
|
∮32 |
55 |
10 |
35.5 |
50 |
10*8*50 |
|
∮40 |
65 |
10 |
43.5 |
60 |
10*8*60 |
|
∮50 |
80 |
14 |
54 |
75 |
14*9*75 |
詳細說明

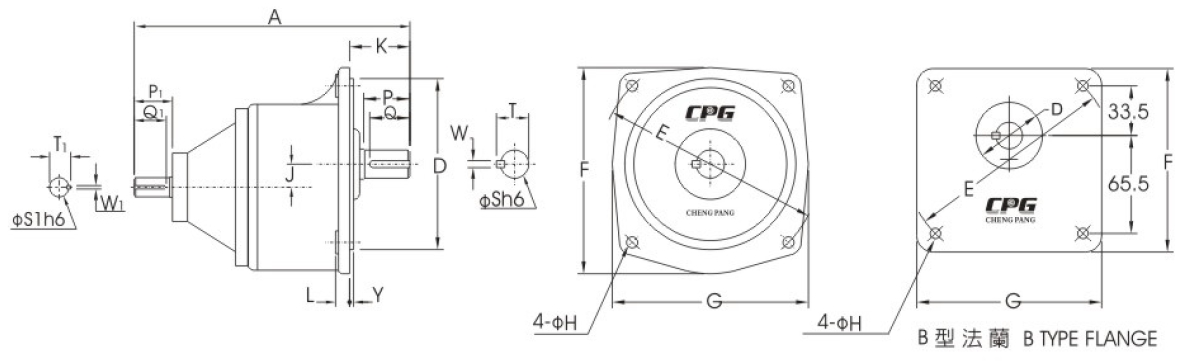

尺寸表 / Dimension
單位(MM)
|
馬力 KW |
減速比 RATIO |
型番 SIZE(S) |
A |
D |
E |
F |
G |
H |
J |
K |
L |
Y |
圖檔 |
DWG 圖檔 |
3D 圖檔 |
|
100W |
3-50 |
*18 |
165 |
50 |
140 |
120 |
120 |
9 |
16 |
38.5 |
12 |
6 |
|
|
|
|
60-200 |
22 |
195 |
148 |
185 |
175 |
165 |
11 |
17.5 |
48 |
12 |
3 |
|
|
|
|
|
200W |
3-10 |
*18 |
165 |
50 |
140 |
120 |
120 |
9 |
16 |
38.5 |
12 |
6 |
|
|
|
|
15-90 |
22 |
195 |
148 |
185 |
175 |
165 |
11 |
17.5 |
48 |
12 |
3 |
|
|
|
|
|
100-200 |
28 |
230 |
170 |
220 |
205 |
195 |
12 |
23 |
58 |
13 |
3 |
|
|
|
|
|
400W |
3-10 |
22 |
235 |
148 |
185 |
175 |
165 |
11 |
17.5 |
48 |
12 |
3 |
|
|
|
|
15-90 |
28 |
265 |
170 |
220 |
205 |
195 |
12 |
23 |
58 |
13 |
3 |
|
|
|
|
|
100-200 |
32 |
300 |
185 |
255 |
248 |
225 |
15 |
30 |
65 |
16 |
3 |
|
|
|
|
|
750W |
3-25 |
28 |
275 |
170 |
220 |
205 |
195 |
12 |
23 |
58 |
13 |
3 |
|
|
|
|
30-120 |
32 |
310 |
185 |
255 |
248 |
225 |
15 |
30 |
65 |
16 |
3 |
|
|
|
|
|
125-200 |
40 |
365 |
230 |
310 |
291 |
272 |
15 |
36 |
85 |
21 |
5 |
|
|
|
|
|
1500W |
3-30 |
32 |
320 |
185 |
255 |
248 |
225 |
15 |
30 |
65 |
16 |
3 |
|
|
|
|
40-100 |
40 |
375 |
230 |
310 |
291 |
272 |
15 |
36 |
85 |
21 |
5 |
|
|
|
|
|
2200W |
3-40 |
40 |
390 |
230 |
310 |
291 |
272 |
15 |
36 |
85 |
21 |
5 |
|
|
|
|
45-100 |
50 |
450 |
280 |
390 |
372 |
342 |
18 |
51 |
92 |
25 |
5 |
|
|
|
|
|
3700W |
3-10 |
40 |
390 |
230 |
310 |
291 |
272 |
15 |
36 |
85 |
21 |
5 |
|
|
|
|
15-100 |
50 |
450 |
280 |
390 |
372 |
342 |
18 |
51 |
92 |
25 |
5 |
|
|
|
備註：* : 屬於B型出力法蘭 / * BELONG TO B TYPE OUTPUT FLANGE.
* : 非標準規格，客戶未指定，不作此規格
