齒輪減速機

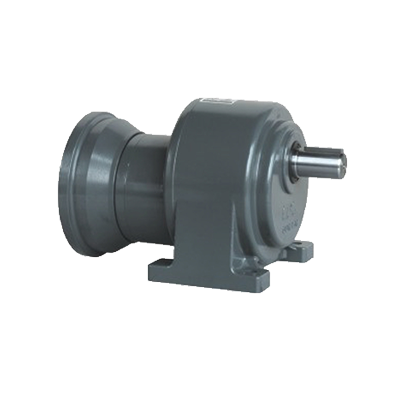

CHM 臥式入力法蘭高速比齒輪減速機
入力孔尺寸 / INPUT BORE
|
馬力 KW |
入力孔 BORE |
鍵槽 KEYWAY |
|
|
S1F7 |
W1 |
T1 |
|
|
1/4 HP |
∮11 |
4 |
12.8 |
|
1/2 HP |
∮14 |
5 |
16.3 |
|
1 HP |
∮19 |
6 |
21.8 |
出力軸尺寸 / OUTPUT SHAFT
|
出力軸 SHAFT |
鍵槽 KEYWAY |
鍵 KEY |
|||
|
Sh6 |
P |
W |
T |
Q |
SPEC' |
|
∮32 |
55 |
10 |
35.5 |
50 |
10*8*50 |
|
∮40 |
65 |
10 |
43.5 |
60 |
10*8*60 |
|
∮50 |
80 |
14 |
54 |
75 |
14*9*75 |
詳細說明

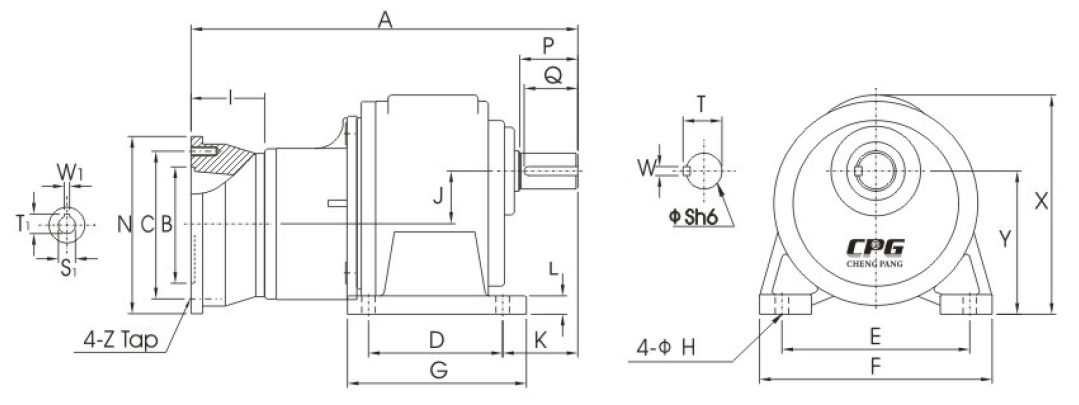

尺寸表 / Dimension
單位(MM)
|
馬力 KW |
減速比 RATIO |
型番 SIZE(S) |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
N |
X |
Y |
Z |
圖檔 |
DWG 圖檔 |
3D 圖檔 |
|
200W |
250-1800 |
32 |
335 |
110 |
130 |
130 |
170 |
210 |
165 |
13 |
55 |
47.5 |
70 |
23 |
160 |
212 |
140 |
M8 |
|
|
|
|
400W |
250-1800 |
40 |
410 |
110 |
130 |
150 |
210 |
265 |
198 |
15 |
55 |
59 |
89 |
24 |
160 |
250 |
162 |
M8 |
|
|
|
|
750W |
250-1800 |
50 |
490 |
130 |
165 |
170 |
265 |
325 |
238 |
18 |
82 |
74 |
120 |
31.5 |
200 |
308 |
200 |
M10 |
|
|
|
備註：配合IEC馬達為主 / AVAILABLE FOR IEC METRIC MOTOR.
