SRC-C/SRCS-C 夾緊式剛性聯軸器
詳細說明

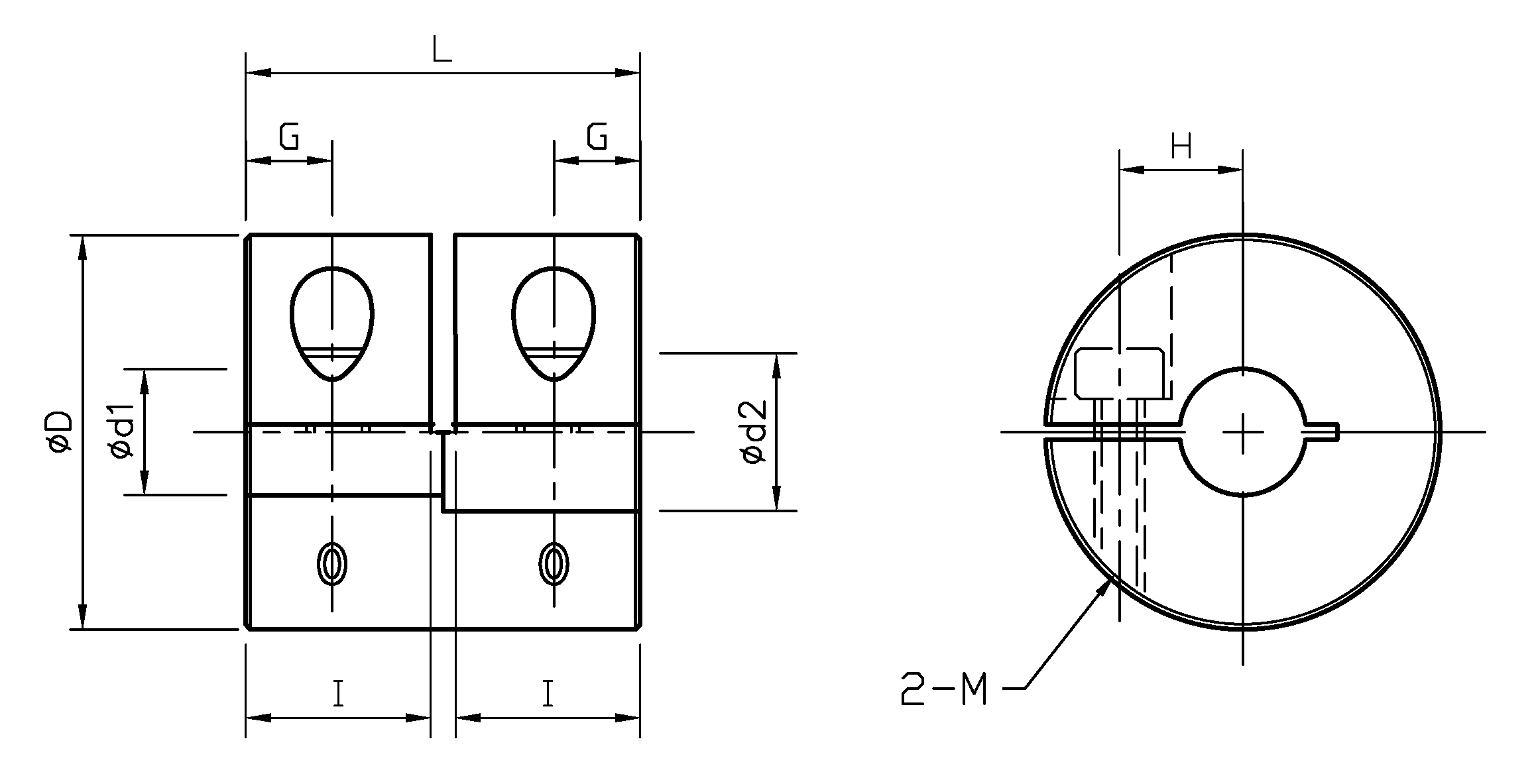

尺寸表 / Dimension
單位(mm)
|
規 格 No. |
D |
I |
L |
G |
H |
M |
D1-D2 |
重量 Weight (g) |
圖檔 |
DWG 圖檔 |
3D 圖檔 |
|
|
min |
max |
|||||||||||
|
SRC-16C |
16 |
7.5 |
16 |
3.5 |
5 |
M2.5 |
5 |
6 |
11 |
|
|
|
|
SRC-20C |
20 |
9.5 |
20 |
4.5 |
6.5 |
M3 |
6 |
8 |
12 |
|
|
|
|
SRC-25C |
25 |
12 |
25 |
6 |
9 |
M4 |
6 |
10 |
30 |
|
|
|
|
SRC-32C |
32 |
15.5 |
32 |
7.5 |
11 |
M4 |
8 |
14 |
71 |
|
|
|
|
SRC-40C |
40 |
19.5 |
40 |
9.5 |
14 |
M5 |
14 |
18 |
120 |
|
|
|
|
SRCS-16C |
16 |
7.5 |
16 |
3.5 |
5 |
M2.5 |
5 |
6 |
21 |
|
|
|
|
SRCS-20C |
20 |
9.5 |
20 |
4.5 |
6.5 |
M3 |
6 |
8 |
41 |
|
|
|
|
SRCS-25C |
25 |
12 |
25 |
6 |
9 |
M4 |
6 |
10 |
85 |
|
|
|
|
SRCS-32C |
32 |
15.5 |
32 |
7.5 |
11 |
M4 |
8 |
14 |
160 |
|
|
|
|
SRCS-40C |
40 |
19.5 |
40 |
9.5 |
14 |
M5 |
14 |
18 |
190 |
|
|
|
* 3D圖檔下載需要安裝SolidWorks軟體才能打開
特性表 / specification
|
規 格 No. |
常用扭力 Rated Torque (N.m) |
最大扭力 Max. Torque (N.m) |
最高轉數 Max. Rotational (rpm) |
慣性矩 Moment of Inertia (Kg.m²) |
|
SRC-16C |
0.3 |
0.6 |
9500 |
3.0 x 10-7 |
|
SRC-20C |
0.5 |
1.0 |
7600 |
8.7 x 10-7 |
|
SRC-25C |
1.0 |
2.0 |
6100 |
2.7 x 10-6 |
|
SRC-32C |
2.0 |
4.0 |
4800 |
7.1 x 10-6 |
|
SRC-40C |
4.0 |
8.0 |
4000 |
1.5 x 10-5 |
|
SRCS-16C |
0.3 |
0.6 |
9500 |
8.0 x 10-7 |
|
SRCS-20C |
0.5 |
1.0 |
7600 |
2.4 x 10-6 |
|
SRCS-25C |
1.0 |
2.0 |
6100 |
7.3 x 10-6 |
|
SRCS-32C |
2.0 |
4.0 |
4800 |
2.5 x 10-5 |
|
SRCS-40C |
4.0 |
8.0 |
4000 |
4.3 x 10-5 |
◆ 特性 / Fratures ◆ 材質 / Material
○ 一體成型 / One-Boby Shape ○ SRC系列-鋁合金 / Aluminum Alloy
○ 超高剛性 / Super High Rigid ○ SRC系列-不鏽鋼 / Stainless Steel
○ 高扭力 / High Torque
○ 低慣性 / Low Inertia
○ 固定方式：止付螺絲式固定 / Set Screw Fix Type
