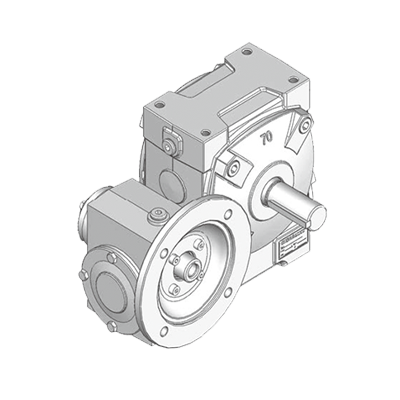

蝸輪減速機
BHWE
鑄鐵蝸輪減速機
1) 機型設計選擇多樣化
2) 底噪音運轉
3) 無安裝限制
4) 使用於中空出力軸轉動場合
詳細說明
BHWE60-175

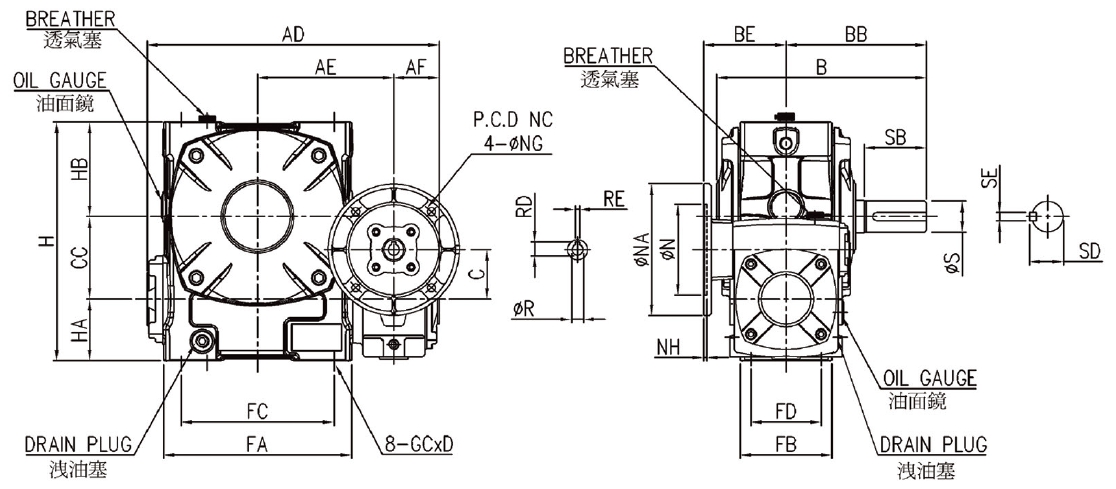

尺寸表 / Dimension
|
規格 Size |
減速比 Ratio |
AD |
AE |
AF |
B |
BB |
BE |
C |
CC |
FA |
FB |
FC |
FD |
GCxD |
H |
HA |
HB |
實心出力軸 Solid Output Shaft |
油量 (I) |
概重 (kg) |
馬力 HP |
|
|
|
|
|
|
||||
|
S(h6) |
SB |
SD |
SE |
子機 l st |
母機 2nd |
RR |
RL |
RD |
LR |
LL |
LD |
||||||||||||||||||||
|
60x34 |
l :100 l :200 l :300 l :400 l :500 l :600 l :800 l :900 |
218 |
100 |
43 |
165 |
110 |
85 |
33.86 |
60 |
127 |
78 |
100 |
54 |
M10x20L |
177 |
42 |
75 |
22 |
50 |
25 |
7 |
0.09 |
0.57 |
10.5 |
1/4 HP |
|
|
|
|
|
|
|
70x40 |
261 |
121 |
46 |
195 |
130 |
89 |
40 |
70 |
156 |
88 |
125 |
66 |
M10x20L |
205 |
50 |
85 |
28 |
60 |
31 |
7 |
0.10 |
0.95 |
16.0 |
1/4 HP |
|
|
|
|
|
|
|
|
80x50 |
284 |
130 |
50 |
210 |
140 |
85 |
50 |
80 |
176 |
101 |
145 |
75 |
M10x20L |
232 |
60 |
92 |
32 |
65 |
35 |
10 |
0.33 |
1.50 |
21.0 |
1/2 HP |
|
|
|
|
|
|
|
|
l00x60 |
352 |
165 |
55 |
260 |
170 |
90 |
60 |
100 |
227 |
112 |
185 |
85 |
M12x24L |
290 |
75 |
115 |
38 |
75 |
41 |
10 |
0.40 |
2.70 |
41.0 |
1/2 HP |
|
|
|
|
|
|
|
|
l20x70 |
415 |
195 |
65 |
290 |
190 |
117 |
70 |
120 |
265 |
132 |
220 |
100 |
M14x28L |
370 |
95 |
155 |
45 |
85 |
48 |
12 |
0.78 |
4.66 |
63.0 |
1 HP |
|
|
|
|
|
|
|
|
l35x80 |
465 |
220 |
70 |
320 |
210 |
129 |
80 |
135 |
298 |
144 |
260 |
110 |
M16x32L |
425 |
105 |
185 |
55 |
95 |
60 |
15 |
1.15 |
6.11 |
88.0 |
2 HP |
|
|
|
|
|
|
|
|
l55xl00 |
534 |
257.5 |
84 |
387 |
252 |
160 |
100 |
155 |
340 |
164 |
280 |
120 |
M16x35L |
423 |
103 |
165 |
60 |
110 |
65 |
15 |
l.65 |
7.41 |
138.0 |
3 HP |
|
|
|
|
|
|
|
|
l75xl20 |
624 |
299 |
100 |
407 |
262 |
180 |
120 |
175 |
370 |
170 |
310 |
120 |
M20x30L |
480 |
100 |
205 |
65 |
110 |
70 |
18 |
3.82 |
11.1 |
194.0 |
5 HP |
|
|
|
|
|
|
|
*入力法蘭界面尺寸請參考D-24頁. Please freference page D-24 for input flange dimensions.
