蝸輪減速機
TKVWE
鑄鐵蝸輪減速機
1) 剛性佳
2) 低噪音
3) 適用於實心出力軸轉動場合
4) 可設計特殊蝸輪低齒隙減速機
詳細說明

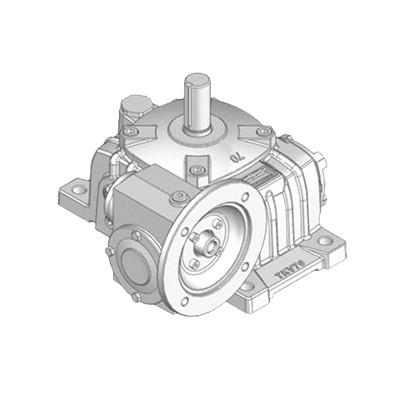

TKVWE60-135

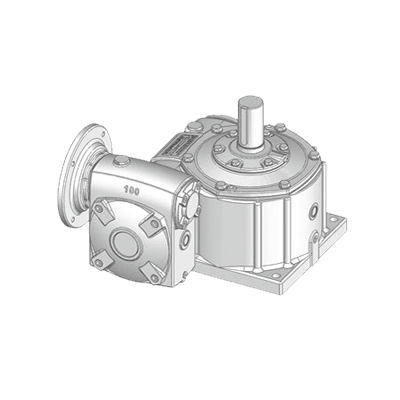

TKVWE155-175

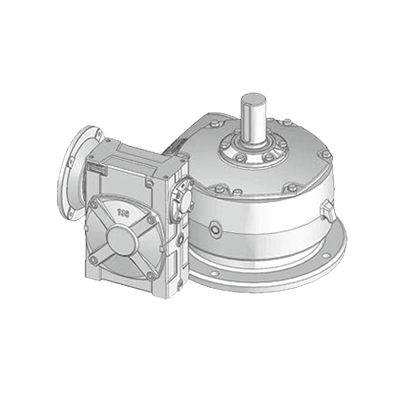

TKVWE200-225

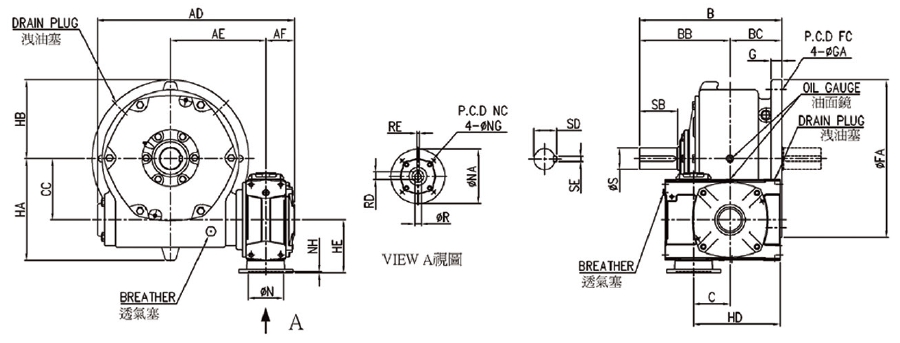

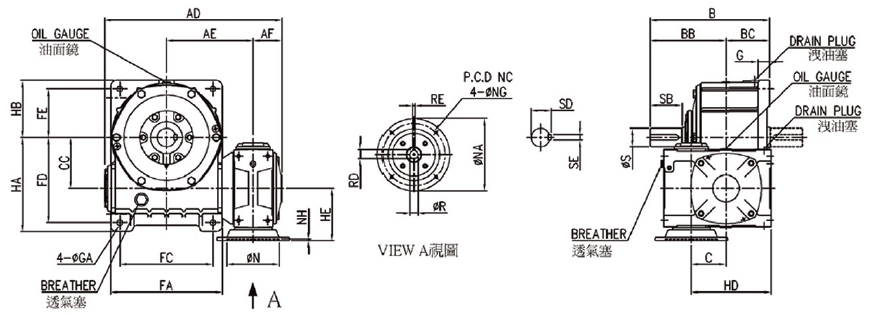

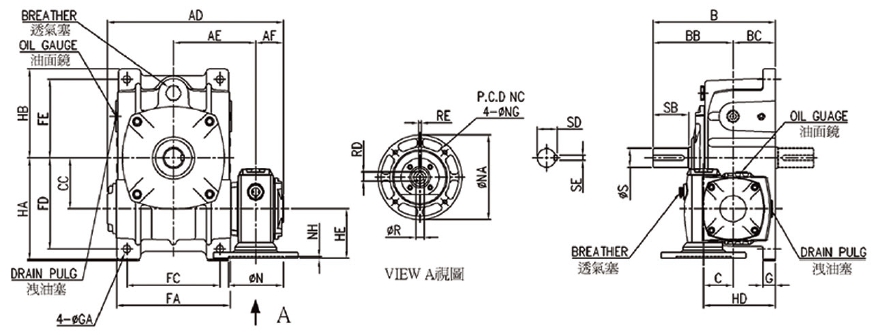

尺寸表 / Dimension
|
規格 Size |
減速比 Ratio |
AD |
AE |
AF |
B |
BB |
BC |
C |
CC |
FA |
FC |
FD |
FE |
G |
GA |
HA |
HB |
HD |
HE |
出力軸 Output Shaft |
油量 (I) |
概重 (Kg) |
|
|
|
|
|
|
||||
|
S(h6) |
SB |
SD |
SE |
子機 l st |
母機 2nd |
AR |
AL |
BR |
BL |
DL |
DR |
|||||||||||||||||||||
|
60 |
l :100 l :200 l :300 l :400 l :500 l :600 l :800 l :900 |
218 |
100 |
43 |
165 |
110 |
55 |
34 |
60 |
126 |
100 |
120 |
105 |
15 |
11 |
137 |
123 |
89 |
85 |
22 |
50 |
25 |
7 |
0.09 |
0.70 |
12.4 |
|
|
|
|
|
|
|
70 |
261 |
121 |
46 |
195 |
130 |
65 |
40 |
70 |
156 |
120 |
135 |
120 |
20 |
15 |
155 |
140 |
110 |
89 |
28 |
60 |
31 |
7 |
0.10 |
0.95 |
18.0 |
|
|
|
|
|
|
|
|
80 |
284 |
130 |
50 |
210 |
140 |
70 |
50 |
80 |
176 |
140 |
150 |
130 |
20 |
15 |
170 |
150 |
120 |
85 |
32 |
65 |
35 |
l0 |
0.33 |
l.45 |
23.0 |
|
|
|
|
|
|
|
|
100 |
352 |
165 |
55 |
260 |
170 |
90 |
60 |
100 |
226 |
190 |
180 |
155 |
30 |
15 |
200 |
175 |
150 |
90 |
38 |
75 |
41 |
10 |
0.40 |
2.50 |
39.0 |
|
|
|
|
|
|
|
|
120 |
415 |
195 |
65 |
290 |
190 |
100 |
70 |
120 |
268 |
220 |
215 |
185 |
30 |
18 |
240 |
210 |
170 |
117 |
45 |
85 |
48 |
12 |
0.78 |
5.07 |
69.0 |
|
|
|
|
|
|
|
|
135 |
465 |
220 |
70 |
320 |
210 |
110 |
80 |
135 |
306 |
260 |
235 |
210 |
35 |
18 |
260 |
235 |
190 |
129 |
55 |
95 |
60 |
15 |
1.15 |
7.13 |
97.0 |
|
|
|
|
|
|
|
|
155 |
539 |
257 |
90 |
392 |
252 |
140 |
100 |
155 |
336 |
290 |
265 |
145 |
35 |
20 |
286 |
170 |
240 |
160 |
60 |
110 |
65 |
15 |
l.65 |
7.50 |
139 |
|
|
|
|
|
|
|
|
175 |
624 |
299 |
100 |
412 |
262 |
150 |
120 |
175 |
380 |
320 |
293 |
167 |
40 |
20 |
324 |
196 |
270 |
180 |
65 |
110 |
69 |
18 |
3.82 |
11.0 |
203 |
|
|
|
|
|
|
|
|
200 |
672 |
322 |
110 |
490 |
315 |
175 |
135 |
200 |
510 |
450 |
- |
- |
40 |
22 |
343 |
255 |
310 |
201 |
70 |
125 |
74.5 |
20 |
5.32 |
14.4 |
263 |
|
|
|
|
|
|
|
|
225 |
735 |
355 |
110 |
525 |
335 |
190 |
135 |
225 |
580 |
510 |
- |
- |
40 |
27 |
374 |
290 |
325 |
201 |
80 |
140 |
84.5 |
20 |
5.32 |
19.5 |
287 |
|
|
|
|
|
|
|
＊入力法蘭界面尺寸請參考D-24頁 Please freference page D-24 for input flange dimensions.
