擺線減速機/變速機
臥式附R型變速機
詳細說明
|

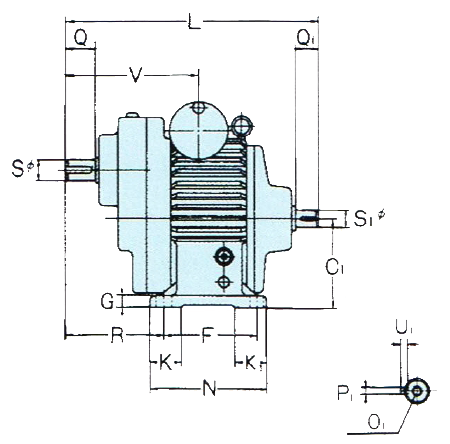

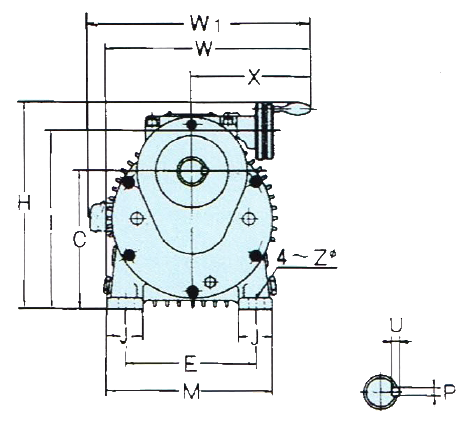

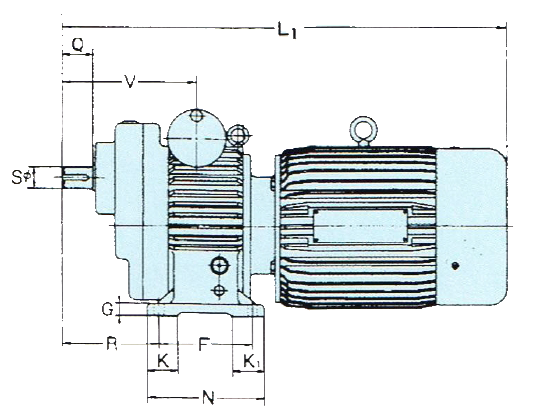

Type |
C |
C1 |
E |
F |
G |
H |
I |
J |
L |
L1 |
M |
N |
O1 |
P |
P1 |
Q |
Q1 |
R |
S(h7) |
S1(h6) |
U |
U1 |
V |
W |
W1 |
X |
Z |
|
|
D002A(4M) |
R2.5 R5 |
116 |
71 |
110 |
105 |
12 |
190 |
150 |
25 |
240 |
395 |
140 |
125 |
M6 |
5 |
5 |
30 |
30 |
87 |
20 |
14 |
5 |
5 |
138 |
195 |
210 |
125 |
9 |
|
D004A(4M) |
R2.5 R5 |
135 |
90 |
120 |
105 |
15 |
220 |
180 |
32 |
250 |
427 |
160 |
135 |
M6 |
5 |
5 |
30 |
30 |
84 |
20 |
14 |
5 |
5 |
134 |
240 |
290 |
150 |
10 |
|
D007A(4M) |
R2.5 R5 |
160 |
106 |
160 |
125 |
15 |
260 |
210 |
38 |
282 |
455 |
195 |
160 |
M6 |
7 |
6 |
35 |
40 |
104 |
25 |
19 |
7 |
6 |
158 |
270 |
310 |
170 |
12 |
|
D015A(4M) |
R2.5 R5 |
190 |
125 |
180 |
140 |
18 |
315 |
250 |
48 |
346 |
582 |
235 |
175 |
M6 |
7 |
8 |
45 |
50 |
123 |
30 |
24 |
7 |
7 |
180 |
313 |
345 |
190 |
12 |
|
D022A(4M) |
R2.5 R5 |
224 |
150 |
245 |
230 |
20 |
380 |
298 |
53 |
308 |
623 |
294 |
270 |
M8 |
10 |
8 |
60 |
60 |
123 |
40 |
28 |
8 |
7 |
225 |
370 |
390 |
220 |
14 |
|
D037A(4M) |
R2.5 R5 |
224 |
150 |
245 |
230 |
20 |
380 |
298 |
53 |
308 |
679 |
294 |
270 |
M8 |
10 |
8 |
60 |
60 |
123 |
40 |
28 |
8 |
7 |
225 |
370 |
390 |
220 |
14 |
|
D055A(4M) |
R2.5 R5 |
318 |
200 |
315 |
250 |
30 |
475 |
390 |
70 |
615 |
833 |
365 |
290 |
M10 |
12 |
10 |
80 |
70 |
239 |
50 |
32 |
10 |
8 |
347 |
430 |
465 |
250 |
18 |
|
D075A(4M) |
R2.5 R5 |
318 |
200 |
315 |
250 |
30 |
475 |
390 |
70 |
615 |
868 |
365 |
290 |
M10 |
12 |
10 |
80 |
70 |
239 |
50 |
32 |
10 |
8 |
347 |
430 |
465 |
250 |
18 |
