聯軸器
SW 高剛性．高扭矩聯軸器
詳細說明

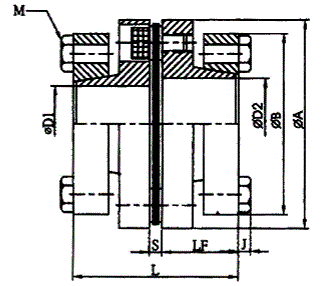

尺寸表 / Dimension
單位(mm)
|
規 格 |
A |
B |
D1 x D2 |
L |
LF |
S |
J |
M |
PCD |
螺絲鎖緊力 |
圖檔 |
DWG 圖檔 |
3D 圖檔 |
|
|
min |
max |
|||||||||||||
|
SW-56 |
56 |
48 |
10 |
17 |
43.9 |
20 |
3.9 |
5 |
8-M5 |
29 |
6Nm |
|
|
|
|
54 |
18 |
25 |
39 |
|||||||||||
|
SW-68 |
68 |
54 |
14 |
22 |
54.2 |
25 |
4.2 |
5.5 |
8-M6 |
36 |
12Nm |
|
|
|
|
64 |
24 |
30 |
48 |
|||||||||||
|
SW-82 |
82 |
64 |
16 |
30 |
64.8 |
30 |
4.8 |
5.5 |
8-M6 |
48 |
12Nm |
|
|
|
|
69 |
32 |
35 |
52 |
|||||||||||
|
SW-94 |
94 |
68 |
19 |
30 |
69.4 |
30 |
9.4 |
5.5 |
8-M6 |
52 |
14Nm |
|
|
|
|
78 |
32 |
48 |
58 |
|||||||||||
|
SW-104 |
104 |
78 |
24 |
50 |
70 |
30 |
10 |
5.5 |
8-M6 |
68 |
14Nm |
|
|
|
|
98 |
55 |
60 |
78 |
|||||||||||
* 3D圖檔下載需要安裝SolidWorks軟體才能打開
特性表 / Specification
|
規 格 |
常用扭力 Rated Torque (N.m) |
最高廻轉數 Max. (rpm) |
容許偏心 Allowable Eccentricity Error(mm) |
容許角度偏差 Allowable Angular Error (o) |
容許軸向位移 Allowable Shaft End-Plaw (mm) |
彈簧定數 Spring Constant (N-m/rad) |
軸向彈簧定數 Shaft Spring Constant (mm) |
慣性矩 Moment of Inertia (Kg.m²) |
重量 |
|
SW-56 |
25 |
10000 |
0.02 |
1° |
±0.40 |
16000 |
43 |
12 x 10-5 |
221 |
|
SW-68 |
60 |
10000 |
0.02 |
1° |
±0.45 |
60000 |
45 |
28 x 10-5 |
400 |
|
SW-82 |
90 |
10000 |
0.02 |
1° |
±0.45 |
70000 |
60 |
35 x 10-5 |
616 |
|
SW-94 |
180 |
10000 |
0.02 |
1° |
±0.80 |
140000 |
120 |
108 x 10-5 |
1000 |
|
SW-104 |
250 |
10000 |
0.02 |
1° |
±0.80 |
160000 |
160 |
115 x 10-5 |
1200 |
◆ 特性 / Fratures
○ 低慣性無背隙 / Low Inertia,Backlash-free
○ 具緩衝抗震功能 / Flexibility and Vibration Resistance
○ 錐形固定方式安全可靠 / Secured by Conical Clampling
○ 適用於伺服馬達或精密定位傳動 / Applicable for Servo Motor or Precise Positioning Transmission
○ 免保養壽命長 / Maintenance-free； Infinite Life
○ 本體鋁合金材質輕量化 / Aluminum Alloy Body； Light-weight
