聯軸器

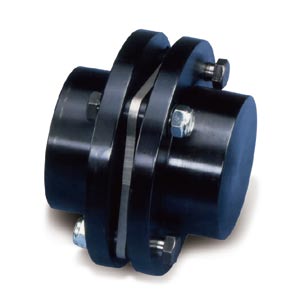

SWP 高鋼性．鋼片聯軸器
詳細說明

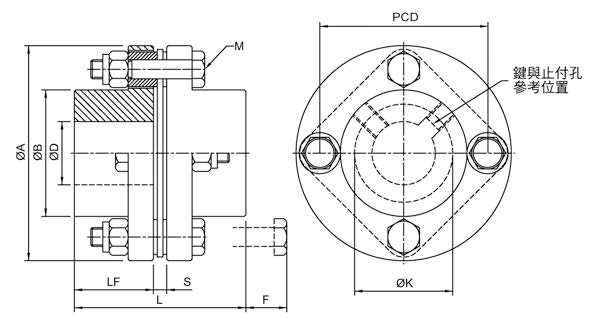

A型鍵槽加工式（Keyway Type）
尺寸表 / Dimension
單位(mm)
|
規 格 |
A |
B |
L |
LF |
S |
F |
M |
K |
PCD |
D1 x D2 |
圖檔 |
DWG 圖檔 |
3D 圖檔 |
|
|
min |
max |
|||||||||||||
|
SWP-68 |
68 |
40 |
54 |
25 |
4.2 |
13 |
4-M6 |
34 |
53 |
8 |
25 |
|
|
|
|
SWP-82 |
82 |
54 |
55 |
25 |
4.8 |
13 |
4-M6 |
36 |
67 |
12 |
35 |
|
|
|
|
SWP-94 |
94 |
58 |
69 |
30 |
9.4 |
23 |
4-M8 |
42.5 |
75 |
12 |
38 |
|
|
|
|
SWP-104 |
104 |
68 |
76 |
33 |
10 |
20 |
4-M8 |
48.5 |
85 |
20 |
42 |
|
|
|
|
SWP-128A |
128 |
78 |
91 |
40 |
11 |
25 |
4-M10 |
55 |
104 |
25 |
48 |
|
|
|
|
SWP-128B |
128 |
92 |
92 |
40 |
12 |
25 |
4-M10 |
55 |
104 |
25 |
65 |
|
|
|
|
SWP-144 |
144 |
88 |
102 |
45 |
12 |
20 |
4-M10 |
57 |
|
30 |
60 |
|
|
|
* 3D圖檔下載需要安裝SolidWorks軟體才能打開

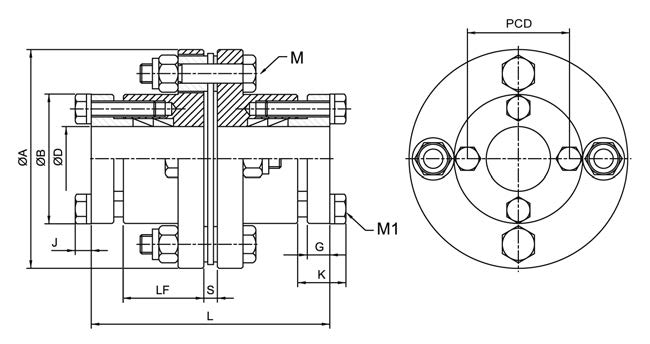

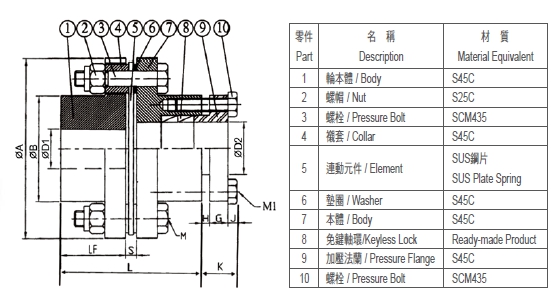

C型免鍵軸環式(Clamping Type)
尺寸表 / Dimension
單位(mm)
|
規 格 |
A |
B |
L |
LF |
S |
H |
M |
J |
G |
M1 |
K |
PCD |
D1 x D2 |
圖檔 |
DWG 圖檔 |
3D 圖檔 |
|
|
min |
max |
||||||||||||||||
|
SWP-68 |
68 |
40 |
70 |
25 |
4.2 |
2.5 |
4-M6 |
5 |
6 |
4-M5 |
13 |
32 |
14 |
20 |
|
|
|
|
SWP-82 |
82 |
54 |
75 |
25 |
4.8 |
2.8 |
4-M6 |
5.5 |
7 |
4-M6 |
15.5 |
44.5 |
14 |
30 |
|
|
|
|
SWP-94 |
94 |
58 |
89 |
30 |
9.4 |
3.4 |
4-M8 |
5.5 |
7 |
4-M6 |
15.5 |
48 |
14 |
35 |
|
|
|
|
SWP-104 |
104 |
68 |
97 |
33 |
10 |
3 |
4-M8 |
6.5 |
8 |
4-M8 |
16.5 |
57 |
20 |
42 |
|
|
|
|
SWP-128A |
128 |
78 |
117 |
40 |
11 |
3 |
4-M10 |
7.5 |
10 |
4-M8 |
20.5 |
62 |
25 |
45 |
|
|
|
|
SWP-128B |
128 |
92 |
118 |
40 |
12 |
3 |
4-M10 |
7.5 |
10 |
4-M8 |
20.5 |
80.5 |
48 |
60 |
|
|
|
|
SWP-144 |
144 |
88 |
128 |
45 |
12 |
3 |
4-M10 |
7.5 |
10 |
4-M8 |
20.5 |
66 |
30 |
55 |
|
|
|
* 3D圖檔下載需要安裝SolidWorks軟體才能打開
特性表 / Specification
|
規 格 |
常用扭力 Rated Torque (N.m) |
最高轉數 Max. Rotational (rpm) |
彈簧定數 Spring Constant (kg.m/rad) |
軸向彈簧定數 Axial Spring Constant (Kg/mm) |
容許軸向誤差 Allowable Axial Error(mm) |
慣矩 Moment of Inertia (Kg.m2) |
最大軸向負荷 Max. Axial Load (kgf) |
重量 Weight (kg) |
|
SWP-68 |
60 |
20000 |
0.25 x 104 |
4.6 |
0.8 |
0.3 x 10-3 |
0.8 |
0.5 |
|
SWP-82 |
90 |
17000 |
0.82 x 104 |
6.0 |
1.0 |
0.87 x 10-3 |
2.3 |
1.0 |
|
SWP-94 |
180 |
15000 |
1.5 x 104 |
12.5 |
1.2 |
1.6 x 10-3 |
4.5 |
1.4 |
|
SWP-104 |
250 |
13000 |
2.4 x 104 |
17 |
1.4 |
2.6 x 10-3 |
6.0 |
2.1 |
|
SWP-128A |
450 |
10000 |
4.2 x 104 |
22.3 |
1.6 |
6.5 x 10-3 |
11 |
3.0 |
|
SWP-128B |
800 |
9000 |
7.0 x 104 |
31.5 |
1.6 |
8.9 x 10-3 |
18 |
3.4 |
|
SWP-144 |
800 |
9000 |
7.2 x 104 |
31.3 |
1.8 |
9.9 x 10-3 |
20 |
4.9 |
◆ 特性 / Fratures
○ 低慣性無背隙 / Low Inertia,Backlash-free
○ 具緩衝抗震功能 / Flexibility and Vibration Resistance
○ 緩衝材 ： 不銹鋼彈片 / Buffer Material ： Stainless
